Gyroscope Sensor Guide: Drift, Range and Robotics
What a gyroscope sensor actually measures
A MEMS gyroscope reports rotation rate around its axes, usually as degrees per second or radians per second. Inside the device, microscopic structures are driven to vibrate. Rotation creates a Coriolis response, which the sensing electronics convert into a rate reading. The result is excellent for detecting quick changes in roll, pitch and yaw.
Rate is not angle. Software estimates a change in angle by summing rate over each measured time interval. That calculation makes accurate timing essential: a delayed packet should keep its original sensor timestamp rather than being treated as if it arrived on schedule. It also explains why a gyro can look smooth in the short term and still wander during a long static test.
A separate gyroscope and precession guide covers classical spinning-body physics. A MEMS gyro uses the Coriolis effect, not a miniature flywheel precessing inside the case.
Why yaw drift appears in a flight log
Even while stationary, a real sensor reports a small non-zero rate. This zero-rate bias changes with temperature, supply conditions, mechanical stress and time. Noise sits on top of it. Once those errors are integrated, the calculated heading moves away from truth.
That means “fix yaw drift” is not one repair. For a self-built quadcopter, the useful first question is whether the fault is sensor bias, motor vibration, magnetic disturbance, timing, axis mapping or control code. An independent logger helps only if it has a different error path and its clocks can be aligned with the flight controller.

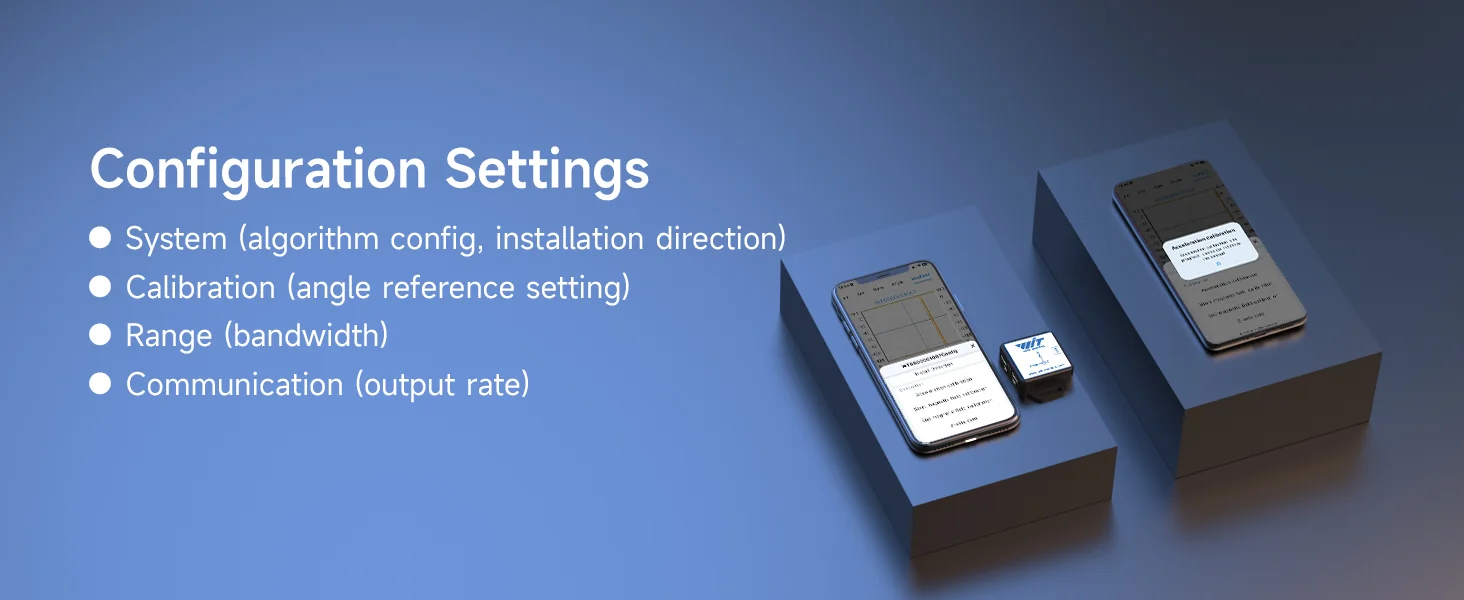

Range, output rate and bandwidth are different controls
| Setting | What it changes | Common mistake |
|---|---|---|
| Gyroscope range | The largest angular rate that can be represented before clipping | Using too narrow a range for a fast manoeuvre, then treating the flat-topped log as real motion |
| Output rate | How often the device reports selected data | Assuming a configured rate equals the complete end-to-end rate received and stored |
| Sensor bandwidth | The frequency content allowed through the measurement chain | Raising output rate without considering vibration, filtering or aliasing |
Choose the narrowest range that survives the fastest event you need to analyse, leaving sensible headroom. Then verify that it never clips during a cautious test. A higher output rate gives more time detail only when the sensor bandwidth, link, receiver and logger can support it.
WitMotion's Bluetooth 5.0 documentation lists configurable output up to 200 Hz for the relevant nine-axis family. Treat 200 Hz as a maximum setting. The usable result depends on selected fields, radio conditions, the receiving device and whether your logger preserves timestamps and flags gaps.
A cleaner drone logging method
When another weekend flight has produced unexplained yaw drift, change one variable at a time. Otherwise a new sensor merely adds another graph to the mystery.
- Map axes before flight. Rotate the airframe slowly around one physical axis at a time and confirm sign and axis labels in both logs.
- Capture a stationary warm-up. Record before arming, without touching the frame. This reveals initial bias and whether it shifts as electronics warm.
- Inspect the mounting. Secure the logger so it follows the frame, but do not let a cable pull it. Note any isolation material because it changes the vibration path.
- Run motors in controlled steps. Compare props-off and flight-ready configurations only where it is safe to do so. Look for rate noise that grows with motor speed.
- Keep original timestamps. Align events such as arming, throttle steps and touchdown across the independent log and flight-controller black box.
- Separate gyro and heading questions. First inspect raw angular rate and bias; only then judge the fused yaw estimate and magnetic reference.
This sequence helps distinguish a hardware noise path from a software bug. It does not prove airworthiness, and an external Bluetooth logger should not be placed in the real-time control loop unless the complete link has been engineered and validated for that role.
When a gyroscope sensor is not enough

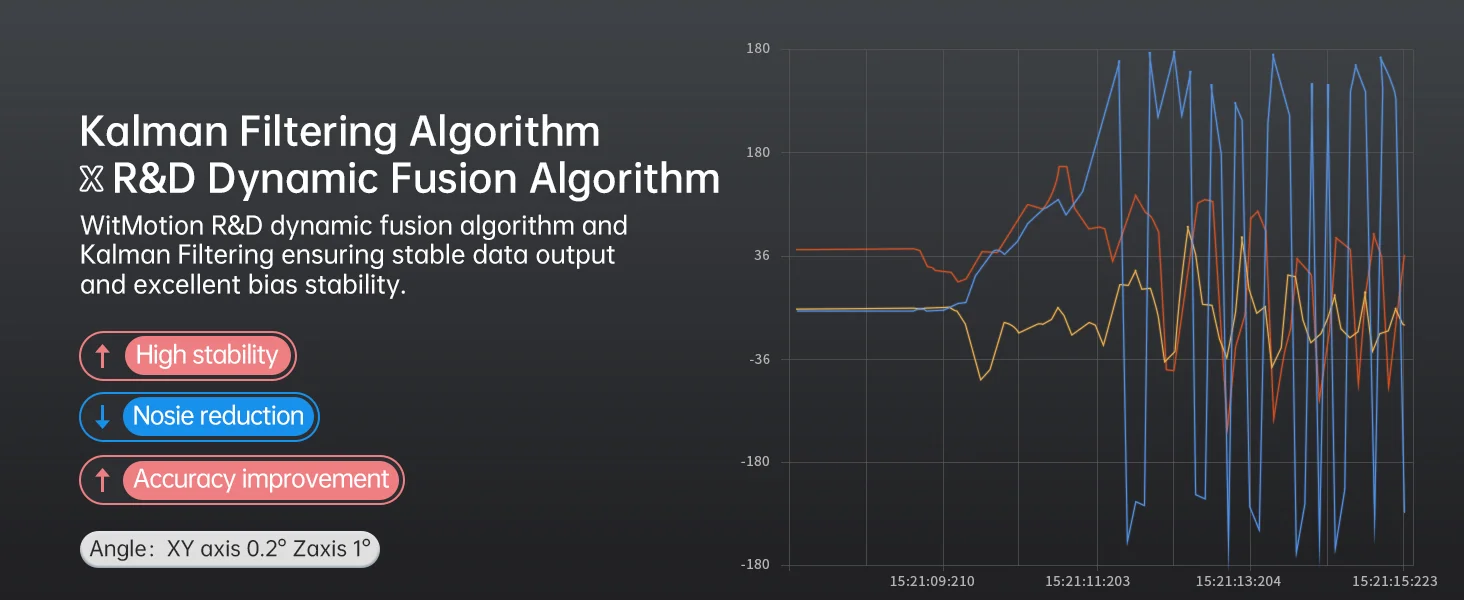

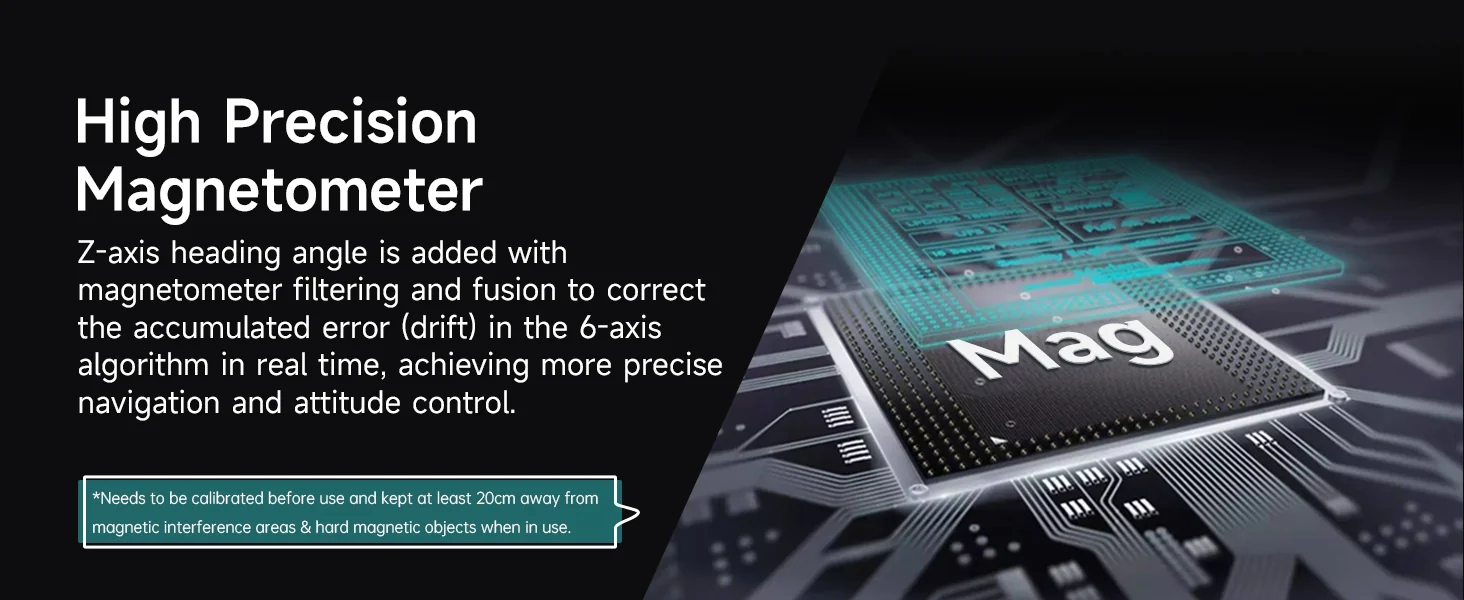

A standalone gyro is useful for short-term rotation and vibration diagnosis. A full IMU sensor adds accelerometers and, in a nine-axis unit, magnetic-field sensing. Fusion can use gravity to constrain roll and pitch and a magnetic or other absolute reference to constrain heading. It cannot remove every error: acceleration corrupts the gravity assumption, magnetic fields are local, and filters add lag and model assumptions.

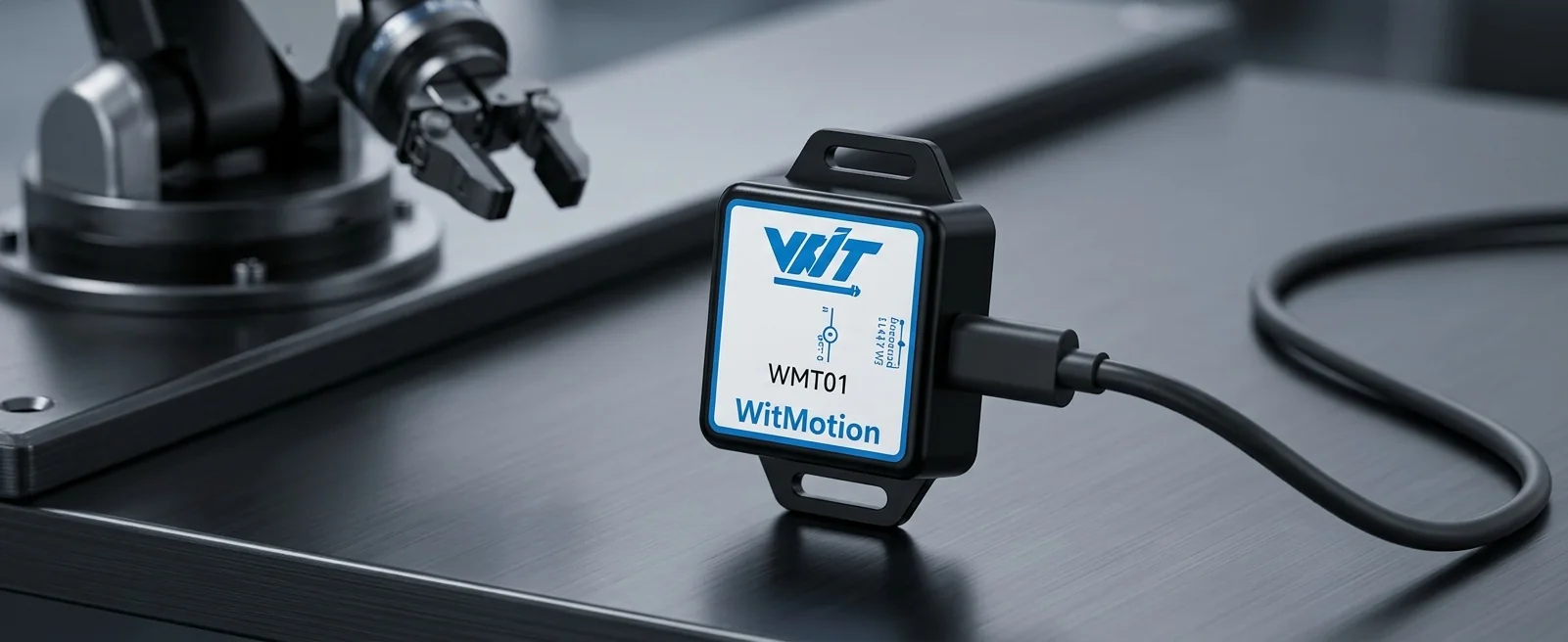

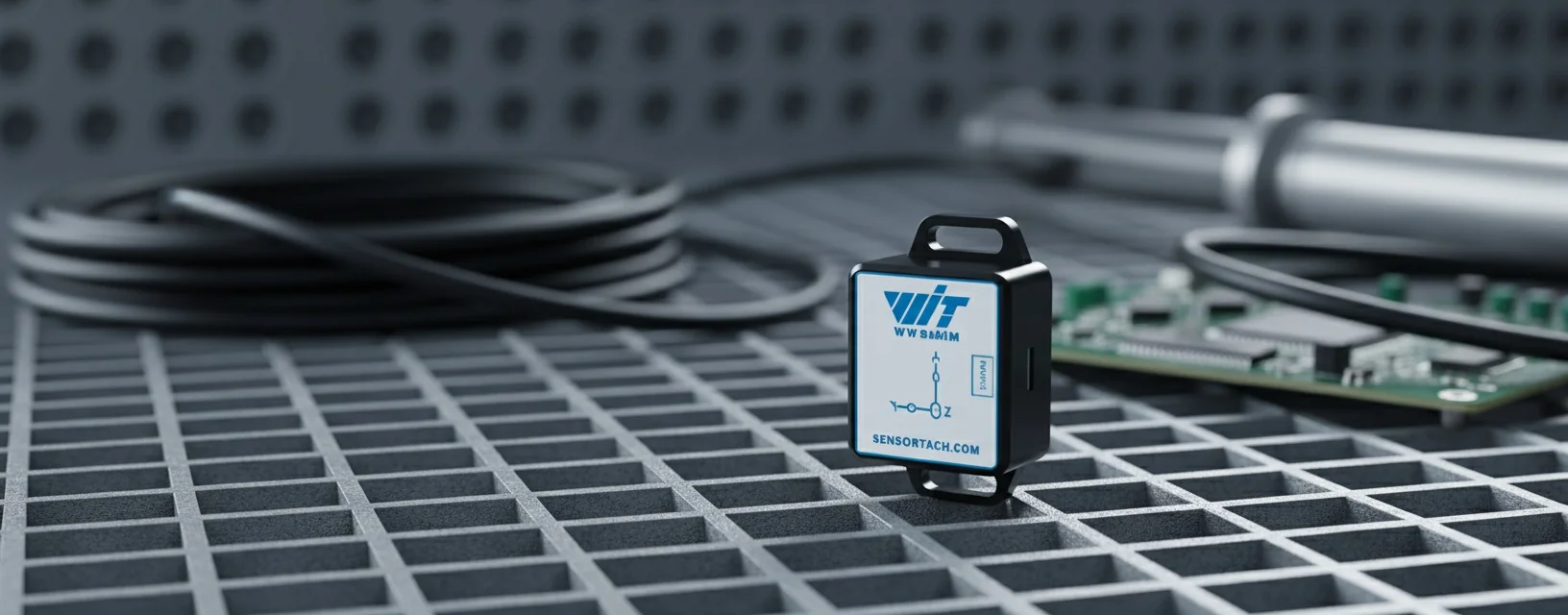

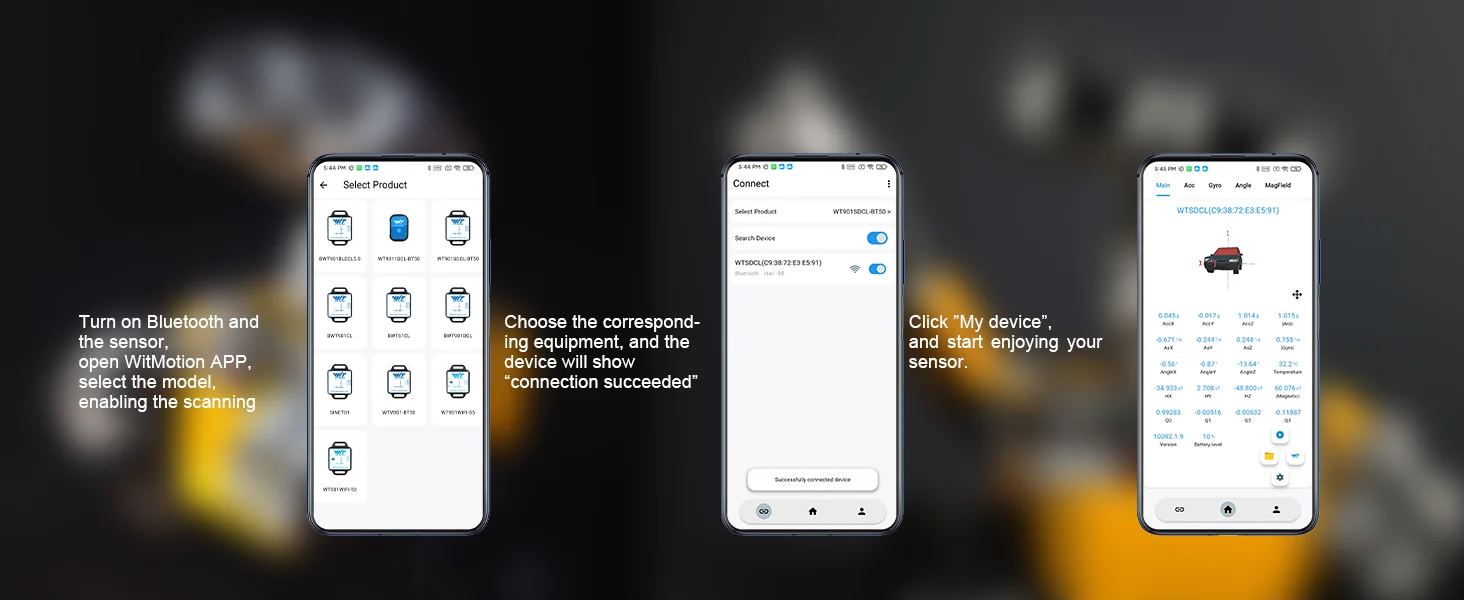

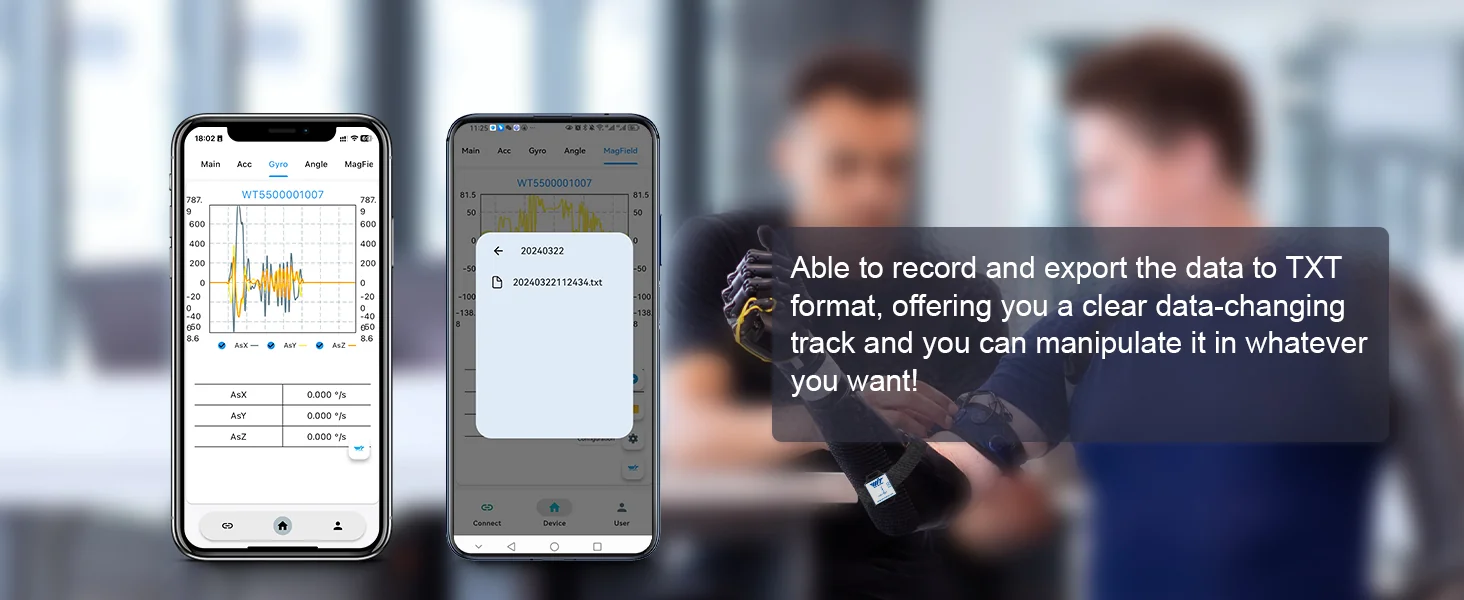

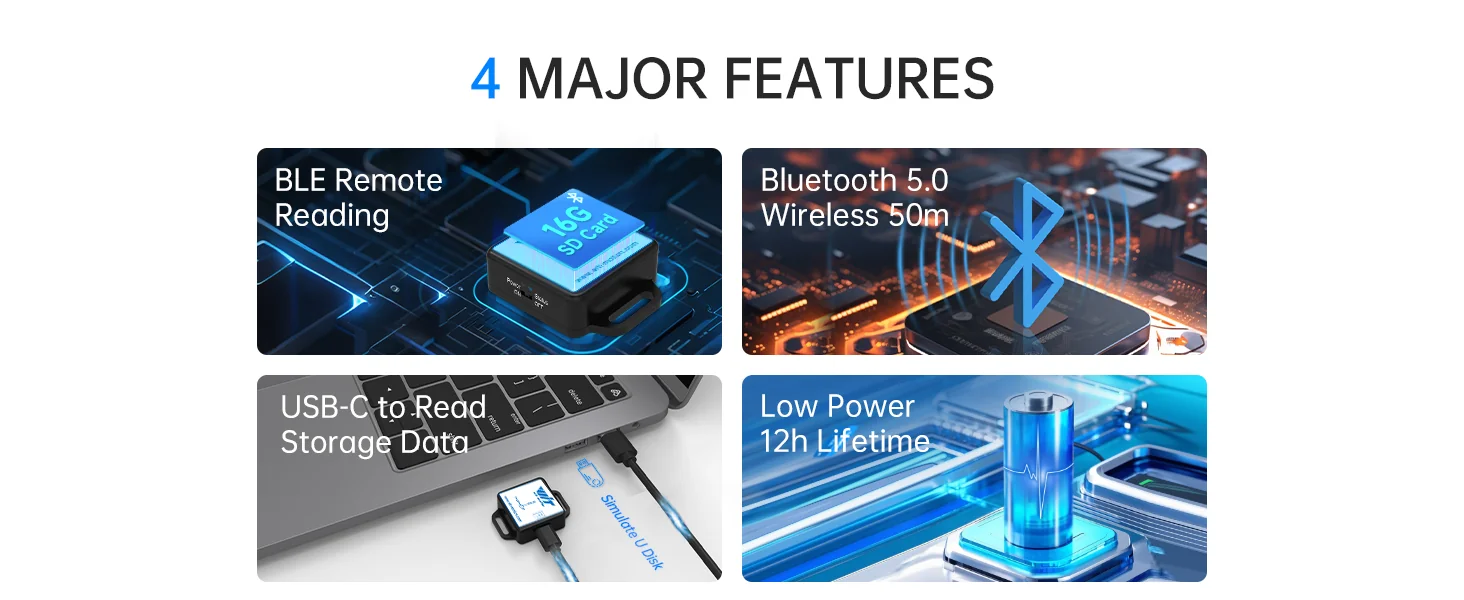

The WitMotion Bluetooth unit linked on this site exposes three-axis acceleration, angular rate and magnetic-field data, plus fused attitude and quaternion outputs using onboard dynamic Kalman filtering. The current listing is £117.04. For an independent drone log, confirm physical mass, mounting, protocol, receiver support and local radio constraints from the current manual before purchase; those details matter more than a generic “drone compatible” label.
Frequently asked questions
Why does a gyroscope sensor drift when it is still?
A real MEMS gyro has small zero-rate bias and noise. Integrating that imperfect rate to estimate angle makes the error accumulate, while temperature and mounting stress can change the bias.
Can a gyroscope alone provide accurate yaw?
It can provide useful short-term yaw change, but it has no absolute heading reference. Long runs normally need another reference such as a magnetometer, vision, GNSS or known landmarks, each with its own limits.
Which gyroscope range should I use on a drone?
Use the narrowest range that does not clip the fastest real manoeuvre or impact you need to record. Confirm this with a cautious test log; a range copied from another airframe may be wrong for yours.
Does a 200 Hz output setting remove motor vibration?
No. Output rate only sets how often data is reported. Vibration still depends on the airframe, mounting, sensor bandwidth, filtering and aliasing, so inspect the spectrum and timestamps rather than assuming a higher number is cleaner.
Build an independent log, not another assumption
Check the available raw outputs, onboard fusion and protocol against the measurements needed for your airframe investigation.
View the current product page — £117.04Fact basis: Advanced Navigation's IMU introduction for rate, integration and random-walk concepts; WitMotion product and BLE 5.0 protocol documentation for available outputs, Kalman fusion and the maximum configurable rate. Flight suitability requires project-specific validation.
